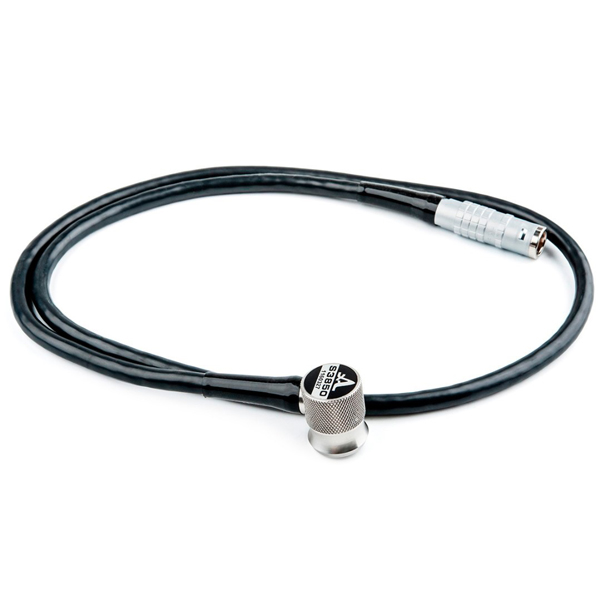

S3850 – SHEAR WAVE EMAT TRANSDUCER
EMAT ultrasonic transducer for transmitting and receiving the ultrasonic shear waves with the novel magnetic biasing technology.
DESCRIPTION
An electro-magnetic acoustic transducer S3850 for the couplant-free transmitting and receiving ultrasonic shear waves by the novel electromagnetic biasing technology (pulse magnetization) can be used for thickness measurements by A1270 EMAT.
The transducer can be driven by following ACS instruments:
• A1270 EMAT
SPECIFICATION
Transducer type |
EMAT (electro-magnetic biasing, no permanent magnet) |
Nominal frequency |
5 MHz |
Effective aperture |
8 mm |
Overall dimensions: |
23x29 mm |
Maximal pulse voltage (peak-to-peak) |
± 200 V |
Cable length: |
1000 mm |
Weight |
14 g |
