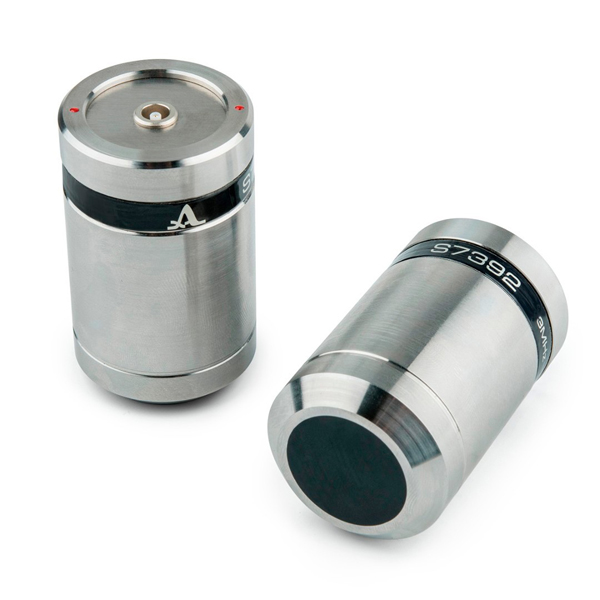

S7392 – SHEAR WAVE EMAT TRANSDUCER
EMAT ultrasonic transducer for transmitting and receiving the ultrasonic shear waves
DESCRIPTION
An electro-magnetic acoustic transducer S7392 for the couplant-free transmitting and receiving ultrasonic shear waves can be used for thickness measurements by A1270 EMAT.
The transducer can be driven by following ACS instruments:
• A1270 EMAT
SPECIFICATION
Transducer type |
EMAT |
Type of generated wave mode: |
Shear wave |
Nominal frequency |
3 MHz |
Effective aperture |
10 mm |
Overall dimensions: |
38x58 mm |
Maximal pulse voltage (peak-to-peak) |
500 V |
Cable length: |
Up to 3.000 mm |
Weight |
255 g |
