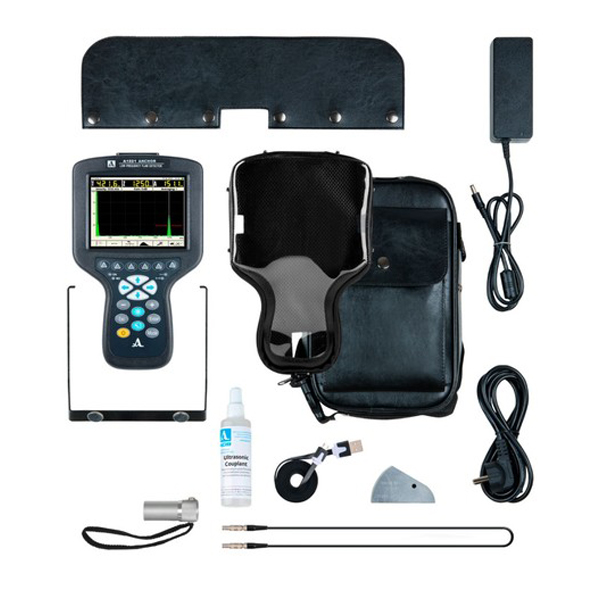

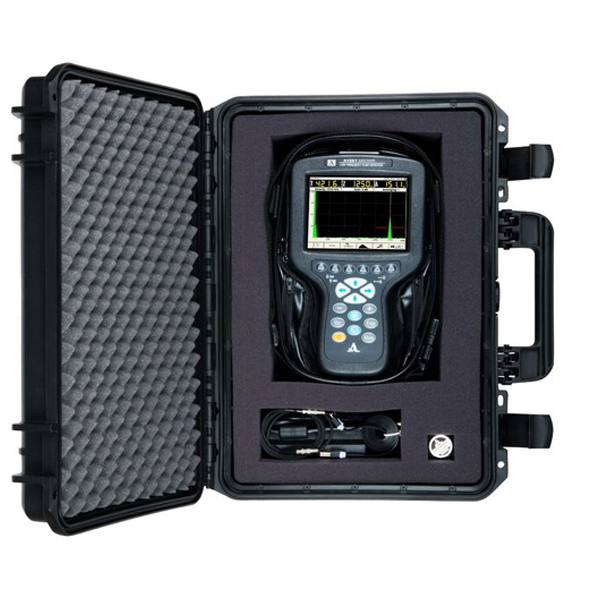

A1221 ANCHOR
An ultrasonic low-frequency tester for in-situ quality assessment of concrete anchors, solid rebars and reinforcement.
PRODUCT DESCRIPTION
A1221 ANCHOR is an ultrasonic instrument for in-situ evaluation of embedded metallic elements by means of low-frequency ultrasonic waves.
APPLICATION
The main application field of A1221 ANCHOR is the non-destructive testing of anchor bolts and similar structural elements.
Following evaluations can be performed by placing ultrasonic transducer on the free outer end of the bolt:
• Detection of anchor breaks
• Residual length/fraction assessment
• Adhesion quality assessment
Application features:
Assessable bolt / rebar diameter |
20-40 millimeters (0.8-1,6 inch) |
Not grouted assessment length |
up to 8 meters (26.3 feet) |
Minimal assessment length |
0.3 meter (9.8 feet) |
Assessable grouting depth in concrete: |
up to 1 meter (3.3 feet) |
Assessable grouting depth in rock: |
up to 4 meters (13.1 feet) |
Application features:
Parameter |
Value |
Operating frequency range, kHz |
25-250 |
Maximal data acquisition length, μs |
4000 |
Assessment length,m |
0.5-3 |
Assessment length of embedded rods, m |
up to 1 |
Assessable rod diameter range, mm |
20-40 |
Material velocity range, m/s |
500-15000 |
Transmitter output voltage, V |
±20, ±100, ±200 |
Transmitter pulse form |
Bipolar meander, 0.5÷5.0 periods |
Pulse repetition rate, Hz |
1-45 |
Gain setup range, dB |
0-100, step 1 |
Number of the programmable points of DAC function |
24 |
Dynamic range of DAC function, dB |
30 |
Power supply |
Built-in battery |
Operation time, h |
14 |
Battery charging time, h |
3 |
Display type |
TFT (640 х 480) |
Electronic unit dimensions, mm |
260×156×43 |
Electronic unit weight, kg |
0.8 |
Operational conditions |
|
Operating temperature range, ºC |
from -20 to +45 |
Relative air humidity at +35°С, %, max |
95 |
