A1207D LEVELGAUGE
Ultra-compact measurement equipment for direct oil level measuring in gear box of Mercedes-Benz passenger cars.
PRODUCT DESCRIPTION

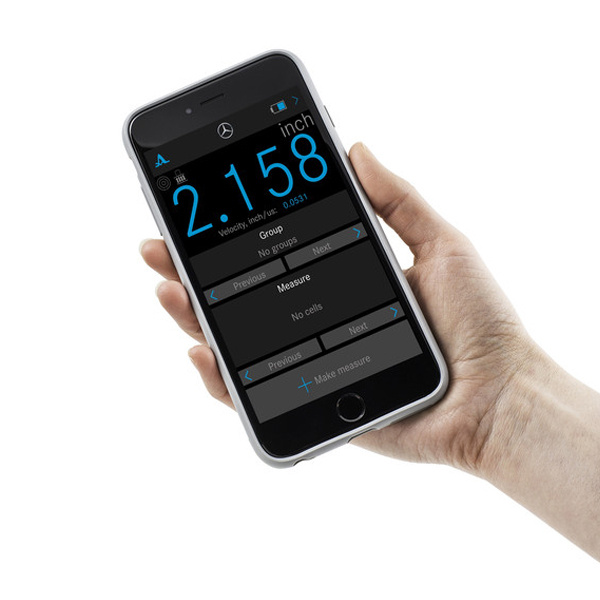

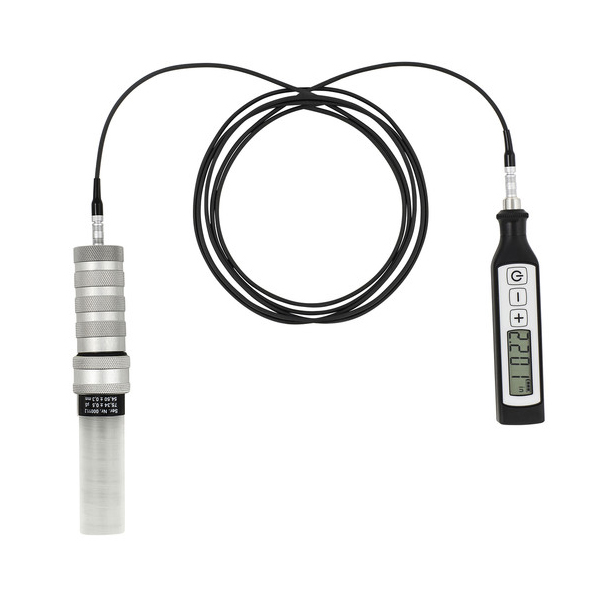

An innovative oil level gauge for noninvasive measuring of gearbox oil by means of ultrasound allows a very quick and simple measurement operation via connecting of ultrasonic probe on the dedicated bayonet fitting and direct indication of the oil level value on the instrument display.
APPLICATION

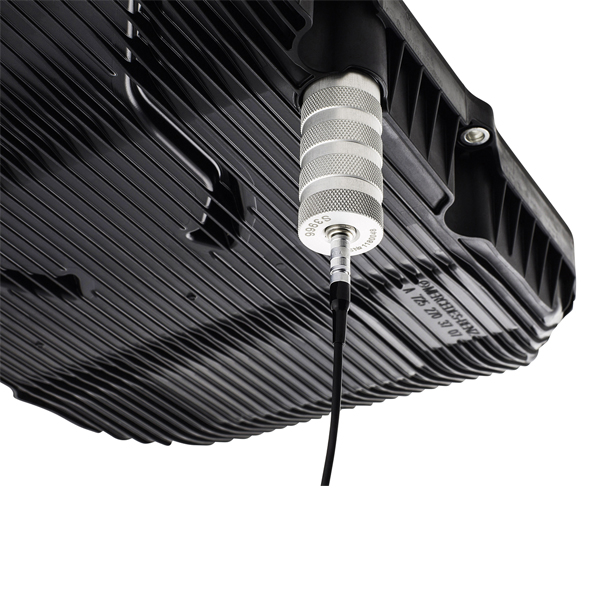

After switch ON the device and applying some couplant to the ultrasonic probe connect the probe to the car gearbox by turning the bayonet connector and compare the displayed result to the value correlating to the measured oil temperature from the diagnosis instrument.
Description |
Dimension |
Value |
Interfaces |
||
Human-Device interaction |
Digital display, buttons |
|
IT – Device |
Bluetooth interface |
|
Power supply to the device |
USB3 Connection |
|
Device – material supply |
Couplant to be applied by user |
|
Time Limits |
||
Uninterrupted operation |
Hours |
16 hours max. |
Lifetime for device and probe: |
Hours |
18,000 |
Functionality check |
Before each use |
|
Cleaning |
After each use |
|
Inspection |
Once per year |
|
General description |
||
Dimensions |
mm |
125 x 25 x 15 |
Weight |
g |
40 |
Display |
mm |
30 x 10 |
Display update rate |
Hz |
10 |
Probe connection |
LEMO 0 |
|
Operating time of accumulator |
Hours |
> 8 |
Ambient temperature |
°C |
-10 to +80 |
Dimensional units |
mm / inch selectable |
|
Performance |
||
Measuring range, sonic run-time |
mS |
16 to 160 |
Tolerance |
mS |
± 1 |
