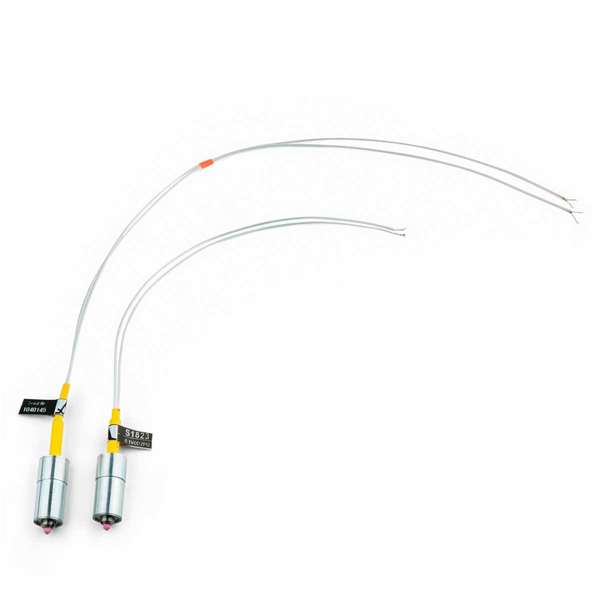

S1823 – DUAL-MODE DPC TRANSDUCER
Low-frequency ultrasonic transducer for transmitting or receiving the longitudinal or shear-horizontal ultrasonic waves in a broad frequency range from 10 to 160 KHz
DESCRIPTION
A dual-mode low-frequency transducer for the dry-point-contact (DPC) excitation or acquiring longitudinal or shear-horizontal ultrasonic waves in highly scattering materials (concrete, wood, stones etc.)
It is delivered in non-wired housing for self-tailored applications, e.g. for customization of transducer arrays by the customer.
The transducer can be driven by following ACS instruments:
• Two units A1560 Sonic-LF
SPECIFICATION
Transducer type |
Dry Point Contact |
Nominal frequency |
100 KHz |
Band width |
10 to 160 KHz |
Capacity |
950 pF ± 50 pF |
Maximal pulse voltage (peak-to-peak) |
± 200 V |
Temperature range |
-20 to +50ºC |
Weight |
18 g |
